Integral butt joint technology of double screw sleeve reinforcement

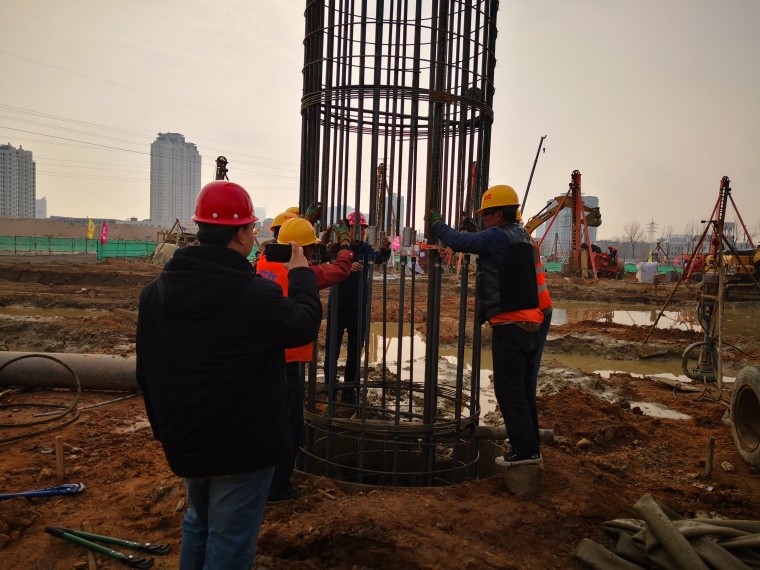

1. The upper reinforcement cage and the lower reinforcement cage are positioned to be installed

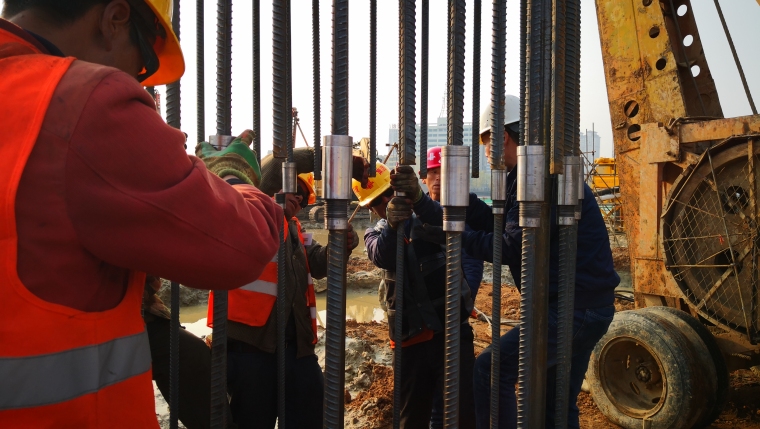

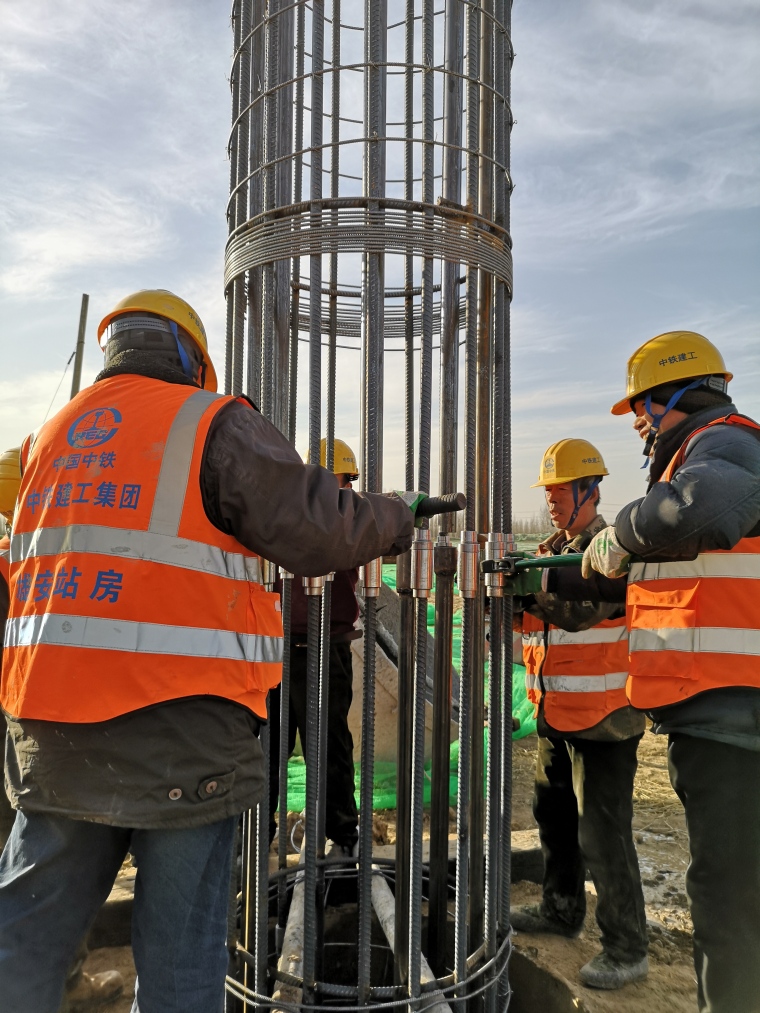

2 connect the reinforcement cage with a connecting wrench at the same time



3. After connection, prepare to bind stirrups



4. Acceptance after connection. The whole connection process has 16 connection nodes and 3 rebar workers, which takes 8 minutes to complete. All double screw sleeve connections can meet the requirements of on-site cutting!

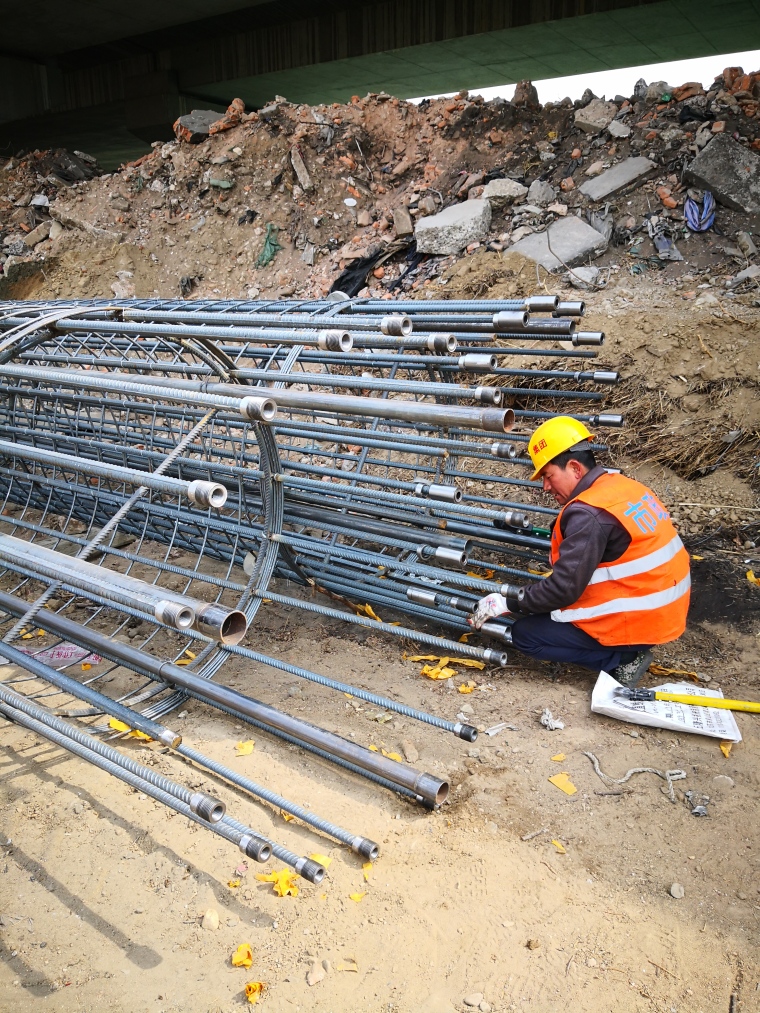

Prefabrication of reinforcement cage and pre installation of double screw sleeve



Hoisting alignment



Connection installation

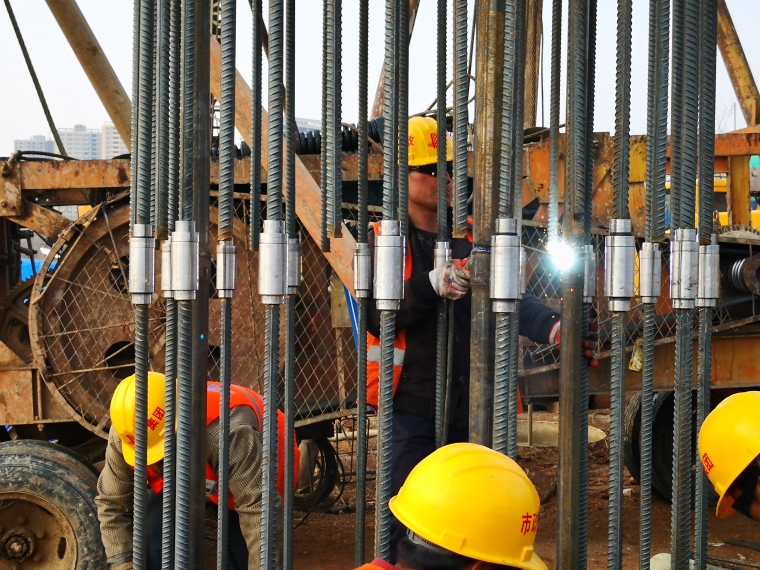

Connection complete

Specimen interception



Broken base metal
